Privia keyboard not detected as MIDI input on mac

[lbm0323]

I'm a noob to keyboards and music production generally, but have set up my Privia PX-S7000 and I have it hooked up via the USB output into my mac(USB-c)



Unfortunately, the keyboard is not being detected in MIDI Studio, so I'm not able to detect the MIDI keyboard in Logic.



I've tried swapping the cable a handful of times, but seem pretty stuck.

If anyone has thoughts I'd really appreciate it!


Some photos/screenshots
 - https://imgur.com/WBj88L8

 - https://imgur.com/Za9a26E



Thanks in advance!



[Mike Martin]

You're using the wrong USB port.  You need to use the square USB-A port on the back for MIDI communication.

[Brad Saucier]

(Edit: oops, Mike beat me to it)



Welcome to the forums and thank you for the photos.  That is very helpful in answering your question.

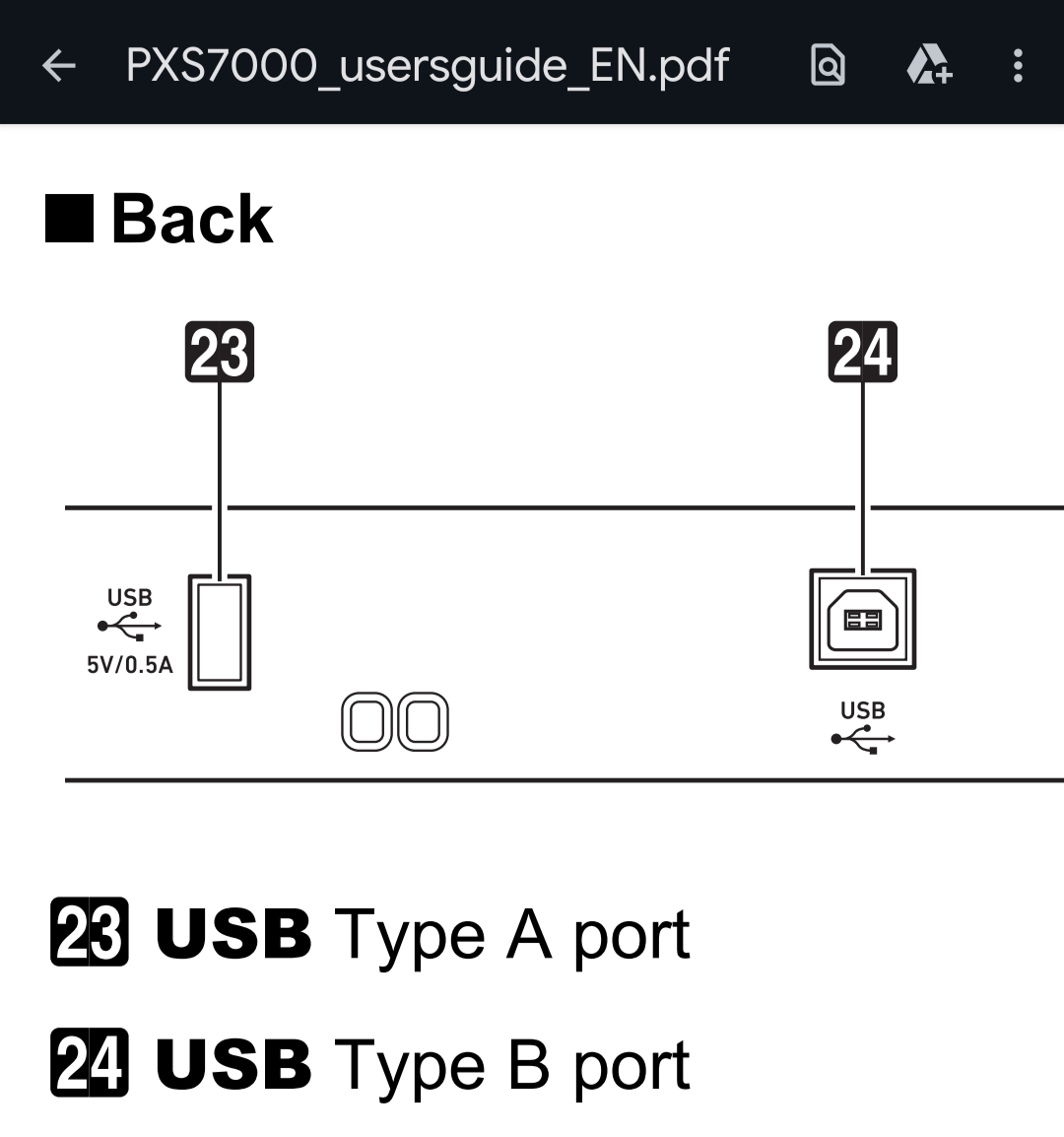

The port you have connected to on the PX-S7000 is not the correct one for MIDI.  Use the USB Type B port (24) to connect as a MIDI controller.





[b77]

Btw, can any of the PX-S series transmit MIDI to Mac (or PC) via Bluetooth? So basically wireless MIDI controller + Mac?

[Brad Saucier]

4 minutes ago, b77 said:

Btw, can any of the PX-S series transmit MIDI to Mac (or PC) via Bluetooth? So basically wireless MIDI controller + Mac?



With the WU-BT10 adapter to Mac, yes.



To PC, not without workarounds.  So far I have not been successful with using Bluetooth MIDI with a PC.

[b77]

Thanks!
