pedal input 3 FX pedal on CT-X5000

[Casio Key]



[Casio Key]

Assignable Pedal on CT-X5000

[Casio Key]

Effects Pedal on CT-X5000

[Casio Key]

Now I can use all 100 DSP on the pedal while playing with both hands. I thought it was amazing to play Clavinet with the Wah-wah effect on the pedal and even trigger or change the speed of the Rotary effect on the pedal etc ... The possibilities are many.

[Casio Key]

[Tommy TJ]

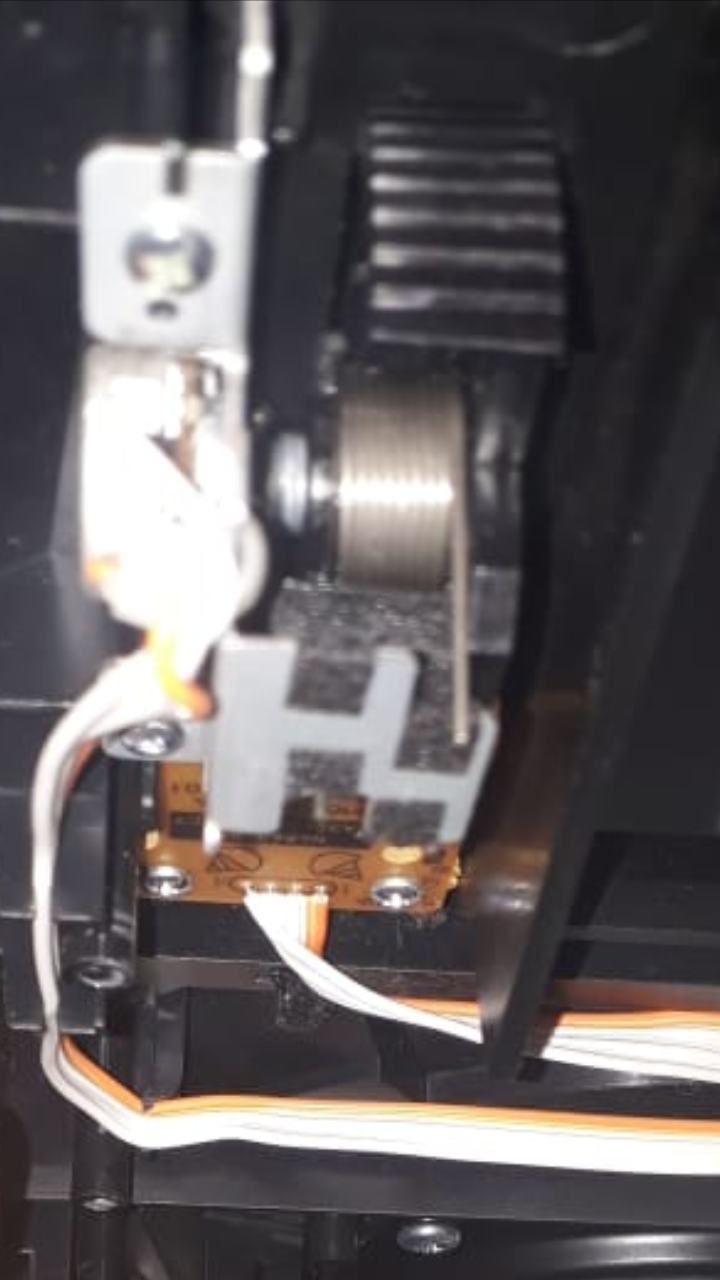

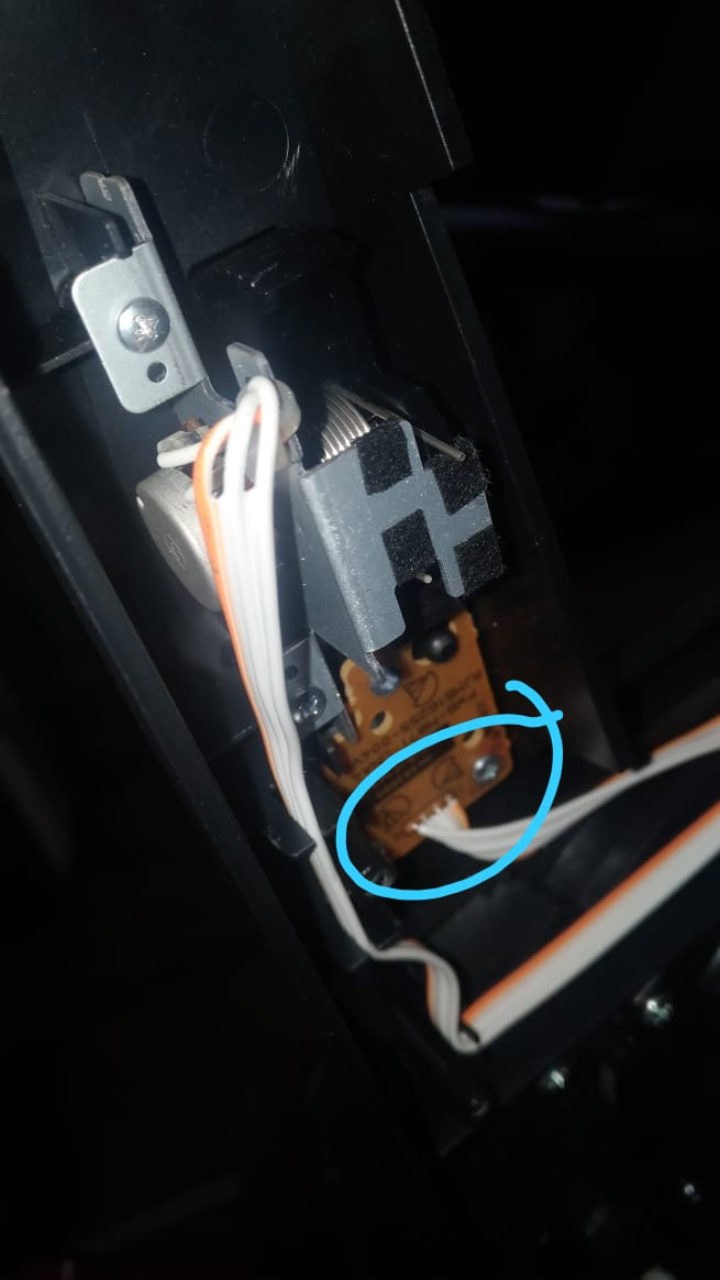

Okay.  Pics are here but no details.  What did you tap in to?  Looks like you went thru battery door but doesn't have any wiring info.  Please Give more information.  Thanks.

[Just Alex]

Yes that would be nice, to use pedal to switch between A/B/C/D intro/ending variations.



[Casio Key]

On 1/9/2021 at 10:25 AM, Tommy TJ said:

Okay.  Pics are here but no details.  What did you tap in to?  Looks like you went thru battery door but doesn't have any wiring info.  Please Give more information.  Thanks.



[Just Alex]

So you just connected to modulation button?

[Tommy TJ]

On 1/6/2021 at 11:28 AM, Casio Key said:

Now I can use all 100 DSP on the pedal while playing with both hands. I thought it was amazing to play Clavinet with the Wah-wah effect on the pedal and even trigger or change the speed of the Rotary effect on the pedal etc ... The possibilities are many.

Details PLEASE!  All of this sounds exactly like what I am looking for. . .  mostly the Rotary effect.

[Casio Key]

I use the pedal to activate a chorus effect, delay, use a different equalization in the timbre, activate and deactivate a layer and everything that is possible to use in the modulation / assignable button. So, I keep playing with both hands while using the modulation / assignable button via a pedal connected to the adapted jack that I installed.

[Casio Key]

On 1/14/2021 at 3:56 PM, Just Alex said:

Yes that would be nice, to use pedal to switch between A/B/C/D intro/ending variations.



Yes, but that is not possible.

[Casio Key]

On 1/25/2021 at 4:55 PM, Just Alex said:

So you just connected to modulation button?

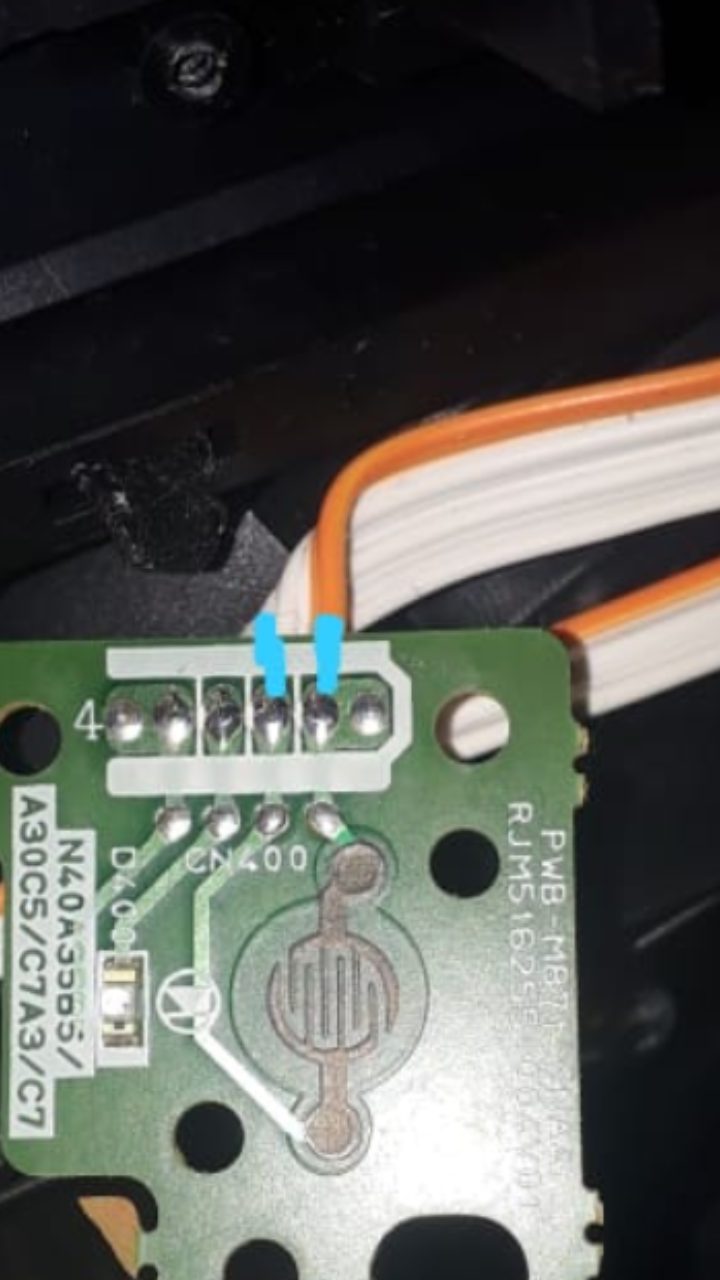

Yes, I did just that. I connected a mono jack using 2 wires on the modulation / assignable button.

[Casio Key]

On 2/13/2021 at 10:05 AM, Casio Key said:

I use the pedal to activate a chorus effect, delay, use a different equalization in the timbre, activate and deactivate a layer and everything that is possible to use in the modulation / assignable button. So, I keep playing with both hands while using the modulation / assignable button via a pedal connected to the adapted jack that I installed.

I use 3 pedals simultaneously connected to the CT-X5000. I use a CASIO SP-20 sustain pedal on pedal input 1 with sustain function, an M-Audio EX-P expression pedal connected to pedal input 2 / expression with volume function in different parts / layers and a CASIO SP-3 sustain pedal connected to the mono jack that I installed with modulation / assignable function.

[Casio Key]

13 minutes ago, Casio Key said:

I use 3 pedals simultaneously connected to the CT-X5000. I use a CASIO SP-20 sustain pedal on pedal input 1 with sustain function, an M-Audio EX-P expression pedal connected to pedal input 2 / expression with volume function in different parts / layers and a pedal sustain CASIO SP-3 connected to the mono jack that I installed with modulation / assignable function.

So, now I have two possibilities to use the modulation / assignable button, because I also have the assignable jack on my CT-X5000.

[Casio Key]



[Casio Key]

On 2/14/2021 at 10:01 AM, Casio Key said:



Watch from 3:50. In this YouTube video@Mike Martin shows the use of a wah-wah effect through a sustain pedal playing on the CASIO PX-5S. I do just that on my CASIO CT-X5000 via the mono jack using a sustain pedal. That is one of the possibilities.

[ConfusedRedditor16]

Wow, that's some neat modification work, you made it like a proper port

[Casio Key]

38 minutes ago, ConfusedRedditor16 said:

Wow, that's some neat modification work, you made it like a proper port

Yes, that way I can use modulation on the pedal. It doesn't work properly with an expression pedal, but it works perfectly with a sustain pedal. I use it a lot as a wah pedal and I can still assign the start and end of the wah filter's range. Using a simple sustain pedal with wah function or any other function that the CT-X5000 allows to assign on the modulatiom / assignable button.

[Just Alex]

How modulation button can control wah effect?



[Casio Key]

On 2/18/2021 at 6:00 PM, Just Alex said:

How modulation button can control wah effect?

On 2/18/2021 at 6:00 PM, Just Alex said:

How modulation button can control wah effect?



It is difficult to explain, because it is very complex, but there is an edited clavi tone with the wah effect on the modulation / assignable button, but I use it through the pedal input 3.



CLAV1WAH.TON CLAVBANK.RBK

[Casio Key]

On 2/19/2021 at 8:22 PM, Casio Key said:



CLAV1WAH.TON 492 B · 3 downloads CLAVBANK.RBK 3.84 kB · 0 downloads

This is done by controlling the manual wah parameter in the DSP auto-wah, manual wah or distortion effects. On my CT-X5000, a switch-type pedal can trigger a timed envelope that accelerates between on and off. This envelope is used to control the manual wah parameter via the modulation / assignable button or assignable pedal on my CT-X5000, of course. This is not "auto-wah". The sustain pedal actually controls the wah. Press the pedal and the wah rises at a controlled rate. Release the pedal and the wah decreases at a controlled rate. The rate of rise and fall is programmed by you beforehand. Casio calls this an envelope pedal. Works great for wah effects. It works exactly the same on the CASIO PX-5S.

[Casio Key]



[Casio Key]

Just now, Casio Key said:



Watch from 3 minutes. @Mike Martin uses a simple sustain pedal with the Wah-wah pedal effect. I no longer need to buy a CASIO PX-5S. CT-X5000 clavinets sound better.
